Menzi Muck M5x

Engineered for extreme terrain, the Menzi Muck M5x performs confidently on some of the steepest slopes imaginable. Its patented, intelligently designed undercarriage allows for safe operation on inclines of up to 45 degrees downhill and 30 degrees uphill.

With a maximum adjustable width of up to 6 metres, the M5x delivers outstanding stability, even in the most demanding conditions. No matter how challenging the environment, this machine is built to handle it with accuracy, control, and reliability.

For operators who expect top-tier performance on extreme terrain, the M5x stands out as a trusted and capable solution.

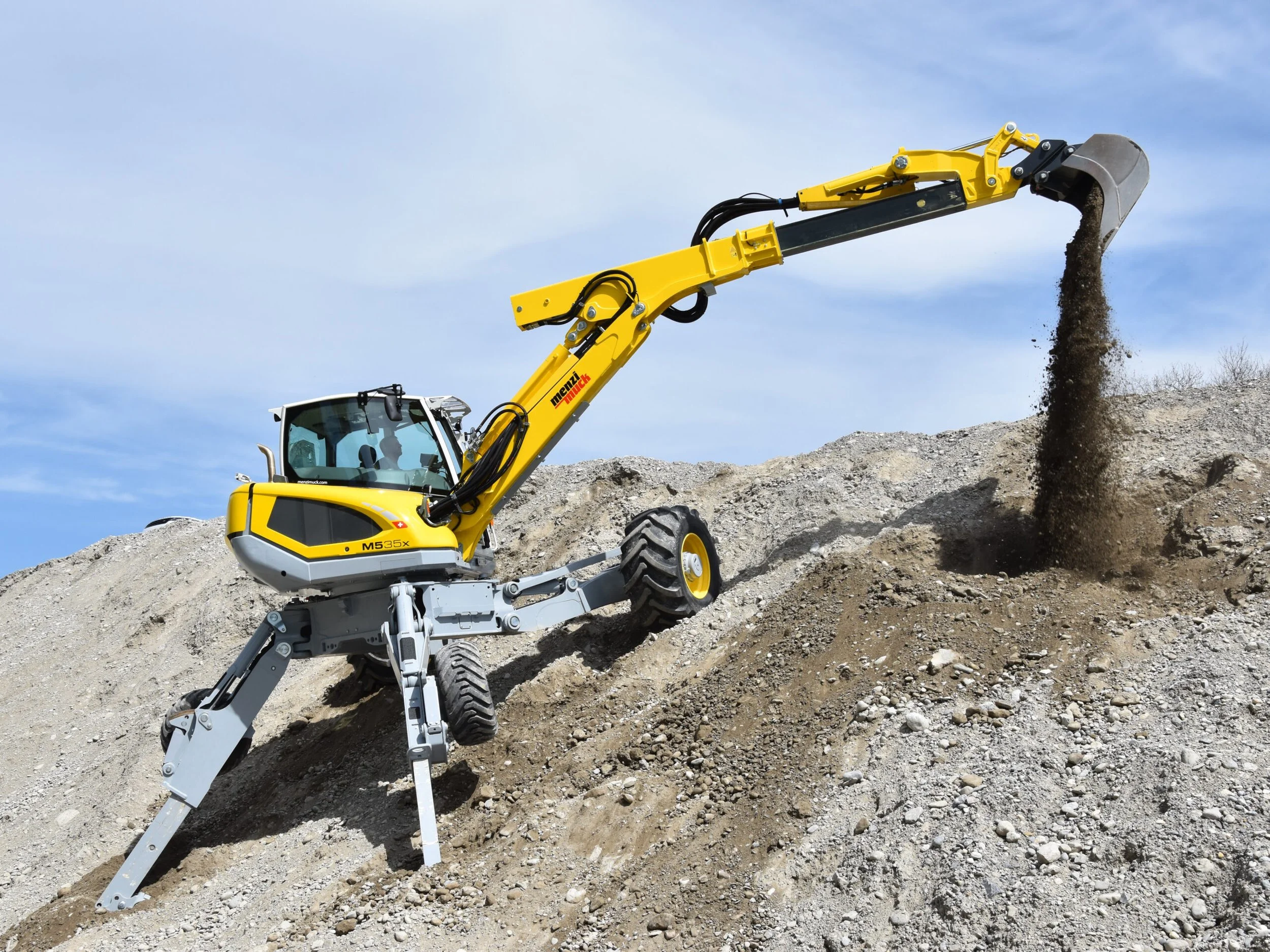

Menzi Muck M5x Spider Excavator

    • Continuously variable Vx-Drive by Menzi up to 15 km/h

    • P-Vation Parallel Support by Menzi

    • Four equally sized wheels up to 800 mm wide

    • Hill supports (front and/or rear optional)

    • Weight: from 13,500 kg

    • Deutz Turbo diesel engine, 4-cylinder115 kW / 156 hp

    • Engine displacement - 4,038 cc

    • Electrical system - 24 V

    • Starter - 4.0 kW

    • Service intervals - 500 h

    • Hydraulic system - Social load sensing by Rexroth

    • Working pump - 290 L/min; 300 bar

    • Travel pump - 210 L/min; 400 bar

    • Powerline - 220 L/min. (optional)

    • Swivel speed - up to 10 rpm

    • Continuously variable Vx-Drive motor by Menzi up to 11 km/h

    • P-Vation Parallel Support by Menzi

    • Hydraulic wheel height adjustment of the steering wheels

    • Hydraulically telescopic support

    • Weight: from 13,000 kg

    • Deutz Turbo diesel engine, 4-cylinder115 kW / 156 hp

    • Engine displacement - 4,038 cc

    • Electrical system - 24 V

    • Starter - 4.0 kW

    • Service intervals - 500 h

    • Hydraulic system - Social load sensing by Rexroth

    • Working pump - 290 L/min; 300 bar

    • Drive pump210 L/min; 400 bar

    • Powerline - 220 L/min. (optional)

    • Pan speed - up to 10 rpm.

    • Continuously variable Vx-Drive motor by Menzi up to 15 km/h

    • Two removable thru-axles with wheels

    • Hydraulically telescopic support

    • Weight: from 12,400 kg

    • Deutz Turbo diesel engine, 4-cylinder115 kW / 156 hp

    • Engine displacement - 4,038 cc

    • Electrical system - 24 V

    • Starter - 4.0 kW

    • Service intervals - 500 h

    • Hydraulic system - Social load sensing by Rexroth

    • Working pump - 290 L/min; 300 bar

    • Drive pump210 L/min; 400 bar

    • Powerline - 220 L/min. (optional)

    • Pan speed - up to 10 rpm
