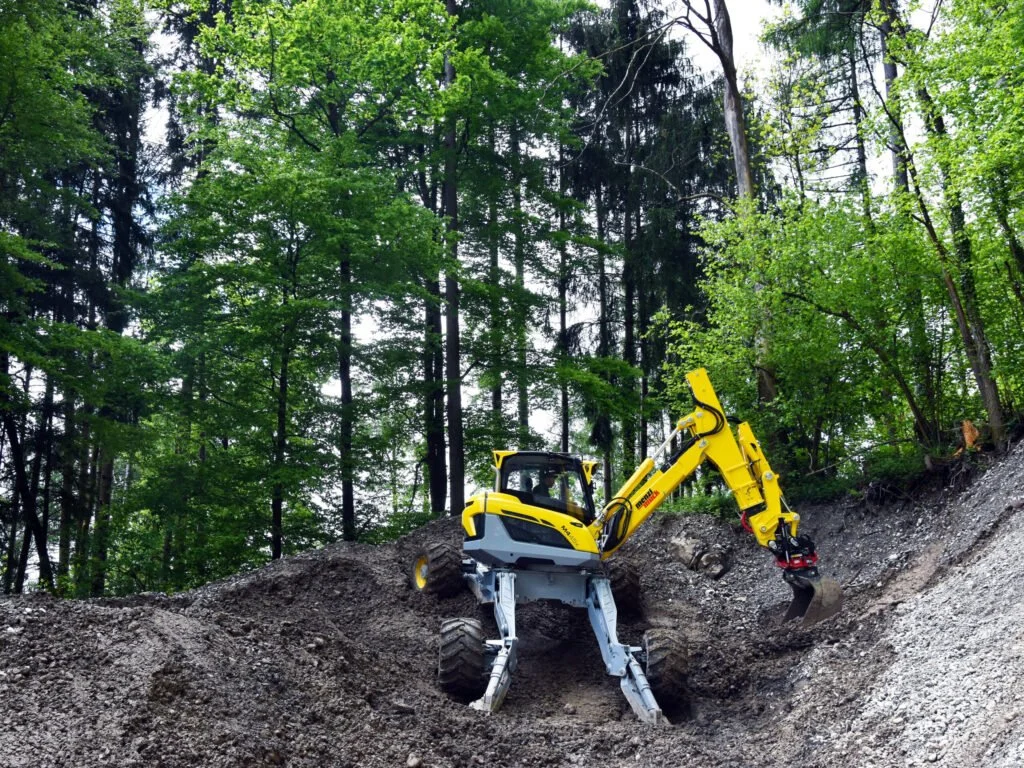

Menzi Muck M4x

The Menzi Muck M4x features a patented X-frame undercarriage designed for exceptional stability, agility, and a well-balanced centre of gravity, allowing for safe and efficient operation across challenging terrain.

Its ability to adjust both horizontally and vertically ensures the machine maintains optimal stability at all times, even on uneven or sloping ground. The advanced boom design maximises the transfer of power to attachments, improving overall efficiency and on-site performance.

In addition, the redesigned overhead boom cylinder delivers a significant increase in push-off force—enhancing the machine’s climbing capability and making it especially effective in demanding environments.

    • Continuously variable Vx-Drive by Menzi up to 15 km/h

    • P-Vation Parallel Support by Menzi

    • Four equally sized wheels up to 800 mm wide

    • Hill supports (front and/or rear optional)

    • Weight: from 13,500 kg

    • Deutz Turbo diesel engine, 4-cylinder115 kW / 156 hp

    • Engine displacement - 4,038 cc

    • Electrical system - 24 V

    • Starter - 4.0 kW

    • Service intervals - 500 h

    • Hydraulic system - Social load sensing by Rexroth

    • Working pump - 290 L/min; 300 bar

    • Travel pump - 210 L/min; 400 bar

    • Powerline - 220 L/min. (optional)

    • Swivel speed - up to 10 rpm

    • Hydrostatic Menzi H-Drive all-wheel drive

    • P-Vation Parallel Support by Menzi

    • Hydraulic wheel height adjustment of the steering wheels

    • Hydraulically telescopic support

    • Weight: from 11,400 kg

    • Deutz Turbo diesel engine, 4-cylinder115 kW / 156 hp

    • Engine displacement - 4,038 cc

    • Electrical system - 24 V

    • Starter - 4.0 kW

    • Service intervals - 500 h

    • Hydraulic system - Social load sensing by Rexroth

    • Working pump - 290 L/min; 300 bar

    • Travel pump - 210 L/min; 400 bar

    • Powerline - 220 L/min. (optional)

    • Swivel speed - up to 10 rpm

    • Hydrostatic Menzi drive

    • Two removable thru-axles with wheels

    • Hydraulically telescopic support

    • Weight: from 10,600 kg

    • Deutz Turbo diesel engine, 4-cylinder115 kW / 156 hp

    • Engine displacement - 4,038 cc

    • Electrical system - 24 V

    • Starter - 4.0 kW

    • Service intervals - 500 h

    • Hydraulic system - Social load sensing by Rexroth

    • Working pump - 290 L/min; 300 bar

    • Travel pump - 210 L/min; 400 bar

    • Powerline - 220 L/min. (optional)

    • Swivel speed - up to 10 rpm
